Nut Coupler
No hose clamp required! Simple and secure
connection to urethane hose.

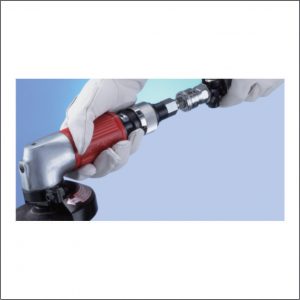

To Mount on hose, simply slide it over the nipple &
tighten the nut (Reduces hose slip & fluid leaks)
Open E-Catalog
Watch Video
Description
Additional information
| Brand |
Nitto Kohki |
|---|
Related products
Rotary Line & Line Coupler
Simple design air line couplings on free turn manifold
Each air outlet can be turned freely to any angle
independently.
- Multiple outlets are available from single air supply source.
- Sideway air outlets are rotatable to any angle. Possible hose twists can be eliminated by the component Cuplas’ swivel mechanism.
- Choose either RT type (2 outlets) or RE type (3 outlets) to suit your application.
Open E-Catalog
Lever Lock (Cam Lock) Coupler
Light lever pull-down will connect the plug and socket without fail ready to flow liquid or gases.
- This Cupla complies with diversified applications in liquid or gas transportation
- End-face seal structure enables no bumps or hollows on the internet fluid passage, and ensures smooth fluid transportation.
Open E-Catalog
Flow Meter & Flow Monitor
For even coolant flow rate and reproducing prescribed flow rate
- Graduated scale enables easy visual check of coolant flow rate regardless of opertaor
- Built in flow rate adjustment valve enables desired setting of mold conditions for each machine.
- Easy resumptions of previously set molding conditions for each machines.
- T2 side is equipped with rotary functions. Even after flexing the body on T1 side to the piping. additional screw tightening on T2 side is possible.
- Maintenance is extremely simple.
Open E-Catalog
Watch Video
450 Coupler
Metal-touch valve system with superior durability! Sleeve stopper mechanism gives secure connection.
- Cupla for higher working pressure up to 44.1 MPa
Open E-Catalog
Hsp Coupler
Special steel body is tough against vibration and impact! Male and female thread end configurations are available. Low pressure loss characteristic suits hydraulic equipment applications.
- Quenched special steel body!
- Powerful impact resistance, especially against impulses.
- Automatic shut-off valves in both socket and plug prevent fluid spill out on disconnection. Easy to handle.
- Optional HSP-DC Cuplas are available for die-casting machine applications with severe pressure variation.
Open E-Catalog
Watch Video
SP-V Coupler
Automatic shut-off valves in both socket and plug for vacuum applications.
Each can withstand a vacuum of as high as 1.3 x 10-1 Pa even when disconnected.
- Uses automatic shut-off valves with utral-tight sealed construction in both socket and plug. Ideal for vacuum applications.
- Having automatic shut-off valves in both socket and plug facilitates easy fluid handling. Suitable for a wide range of vacuum applications as high as 1.3 X 10-1 Pa {1 x 10-3 mmHg} even when disconnected.
- Three types of seal material are available to suit any of the diversified production lines for air conditioners, refrigerators or similar.
- Can be connected with SP Cupla Type A.
Open E-Catalog
Multi Coupler
Simultaneously connects several ports securely in one operation! Greatly cuts cycle time in multiple ports replacement.
- Handles several ports at once.
- Simple manual lever action completes easy connection / disconnection.
- Two stage lever operation prevents Cupla from accidental dropping due to sudden detachment.
- Comes with lock mechanism to prevent accidental disconnection.
- Large flow equivalent to that of SP Cupla Type A.
- Two kinds of plates are available for each size.
- Automatic shut-off valves in both socket and plug prevent fluid spill out on disconnection.
