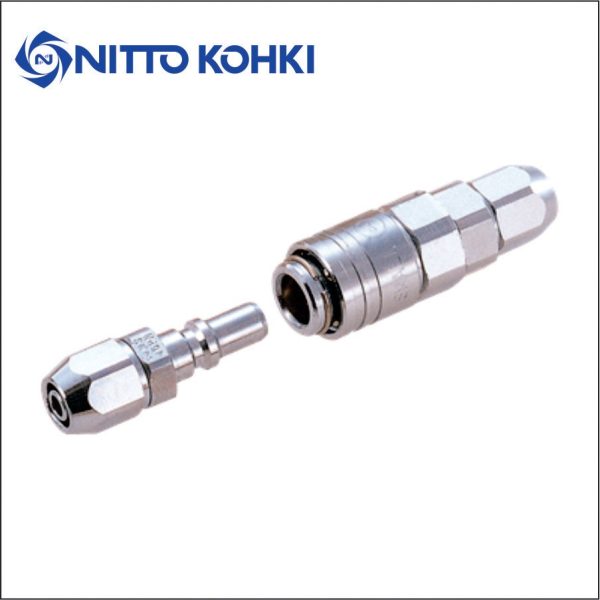

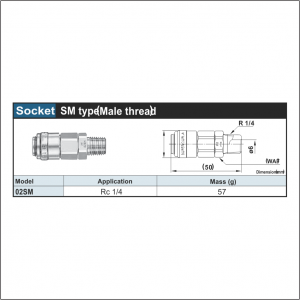

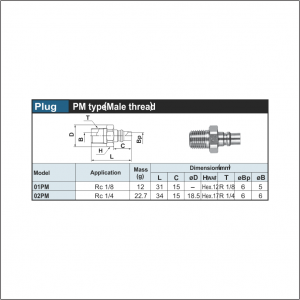

Super Coupler
The lightweight design makes the
Cupla best suited to power tools!
Push-to-connect for easy operation
Open E-Catalog
Description
Additional information
| Brand |
Nitto Kohki |
|---|
Related products
Hi Coupler
Universal purpose couplings for airlines
From factory airline to pneumatic tool connection, available in various body materials, sizes and end configurations. Excellent durability.
- An excellent general purpose coupling for connecting factory air supply to pneumatic tools.
- Steel coupling is suitable for air. Brass or stainless steel is suitable for water. Note that fluid will come out from the plug when disconnected.
- Critical structural parts of steel models are heat-treated for increased strength giving greater durability and resistance to wear.
- Available in various body materials, sizes and end configurations applicable to a wide range of applications
Open E-Catalog
Watch Video
Rotary Line & Line Coupler
Simple design air line couplings on free turn manifold
Each air outlet can be turned freely to any angle
independently.
- Multiple outlets are available from single air supply source.
- Sideway air outlets are rotatable to any angle. Possible hose twists can be eliminated by the component Cuplas’ swivel mechanism.
- Choose either RT type (2 outlets) or RE type (3 outlets) to suit your application.
Open E-Catalog
Full Blow Coupler
Unique full-open gate type valve mechanism
realizes low pressure loss and high flow rate,
which reduces required source air volume.
The flow rate is increased by up to 40% more then that of conventional
Cuplas.
- During connection and disconnection the valve is closed, enabling connection/disconnection under zero line pressure.
- When the sleeve of socket is returned to its original position, the purge mechanism releases the residual air pressure in the plug, eliminating an unpleasant popping noise and a hose whip back motion on disconnection.
Open E-Catalog
Watch Video
700R Coupler
High pressure Cupla for working pressures up to 68.6 MPa. Unique sleeve ring-lock system copes with vibration and impact when connected.
Features
1. For Hydraulic Pressures upto 700 Bar
2. Unique Sleeve ring-lock system copes with vibration and impact when connected
3. Metal-touch valves use no rubber seal and thus ensure excellent durability
4. Both plug & socket have metal-touch automatic shut-off valves that prevent fluid spill out on disconnection.
Open E-Catalog
210 Coupler
Standard hydraulic Cuplas for general purposes with a working pressure up to 20.6 MPa.
Low pressure loss, suitable for hydraulic equipment.
Features
1. For Hydraulic Pressures upto 210 Bar
2. Structure is designed to reduce pressure loss to the lowest and is best for hydraulic applications that need big flow rates
3. Both plug & socket have built-in automatic shut-off vlaves that prevent fluid outflow when disconnected
4. Easy to handle
Open E-Catalog
Multi Coupler
Simultaneously connects several ports securely in one operation! Greatly cuts cycle time in multiple ports replacement.
- Handles several ports at once.
- Simple manual lever action completes easy connection / disconnection.
- Two stage lever operation prevents Cupla from accidental dropping due to sudden detachment.
- Comes with lock mechanism to prevent accidental disconnection.
- Large flow equivalent to that of SP Cupla Type A.
- Two kinds of plates are available for each size.
- Automatic shut-off valves in both socket and plug prevent fluid spill out on disconnection.
Open E-Catalog
Watch Video
Coupler Accessories
Residual pressure within socket or plug can be released easily just by
turning the handle.
- Residual pressure within socket or plug can be released easily just by turning the handle.
- Residual pressure release jigs are available in two types; socket type for use with plugs and plug type for use with sockets.
- Connecting to sockets or plugs is the same as connecting normal cuplas.
