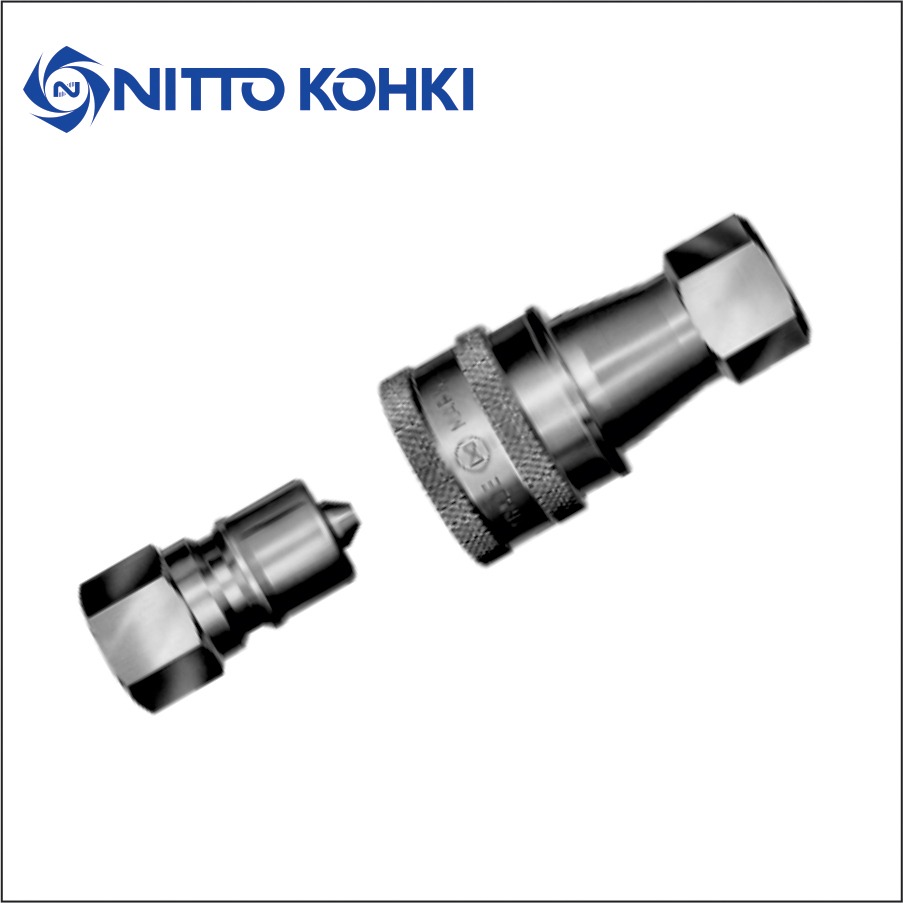

SP-V Coupler
Automatic shut-off valves in both socket and plug for vacuum applications.
Each can withstand a vacuum of as high as 1.3 x 10-1 Pa even when disconnected.
- Uses automatic shut-off valves with utral-tight sealed construction in both socket and plug. Ideal for vacuum applications.
- Having automatic shut-off valves in both socket and plug facilitates easy fluid handling. Suitable for a wide range of vacuum applications as high as 1.3 X 10-1 Pa {1 x 10-3 mmHg} even when disconnected.
- Three types of seal material are available to suit any of the diversified production lines for air conditioners, refrigerators or similar.
- Can be connected with SP Cupla Type A.
Open E-Catalog
Description
Additional information
| Brand |
Nitto Kohki |
|---|
