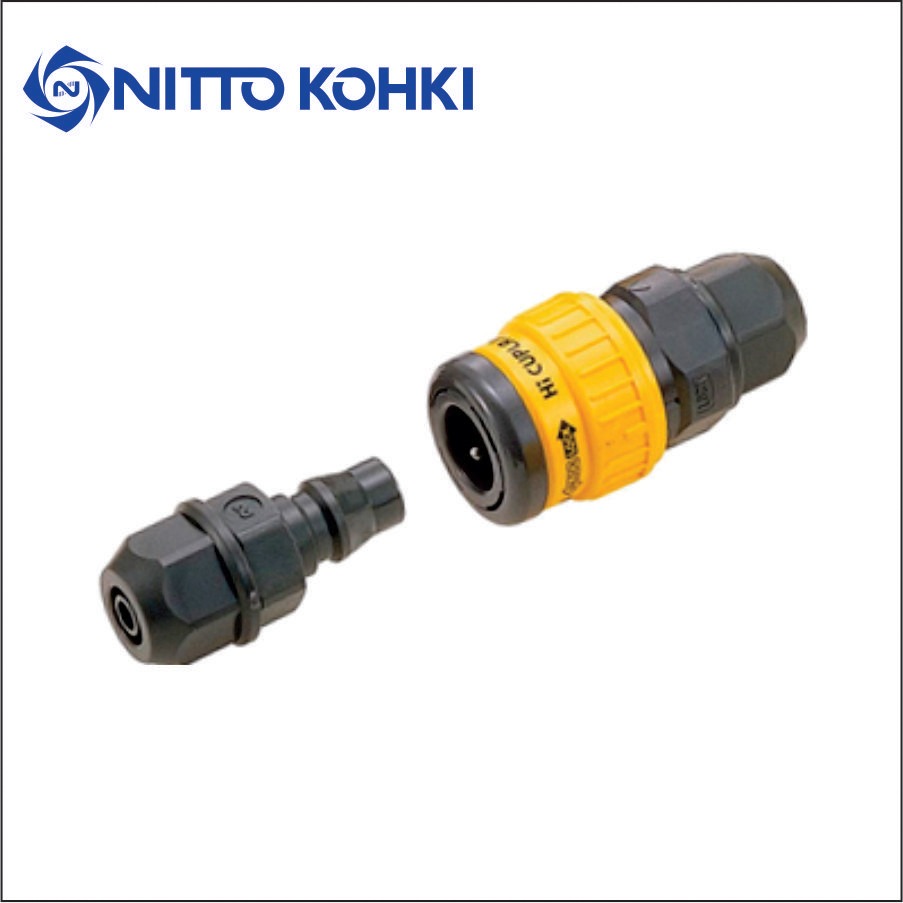

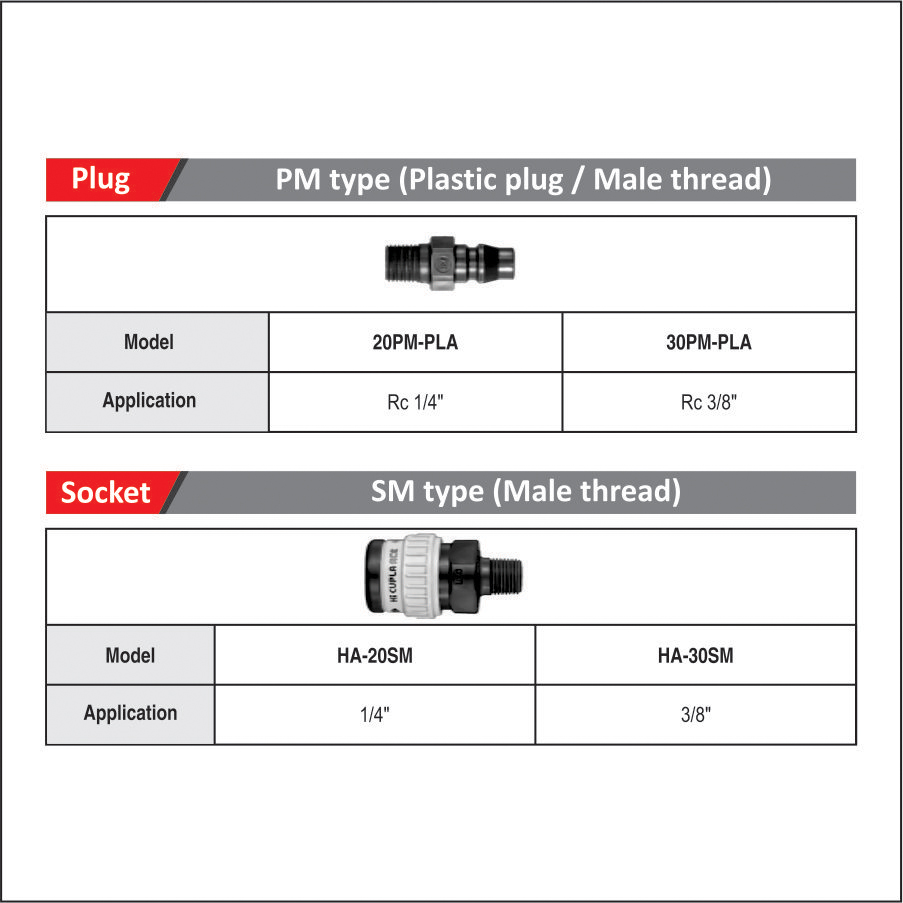

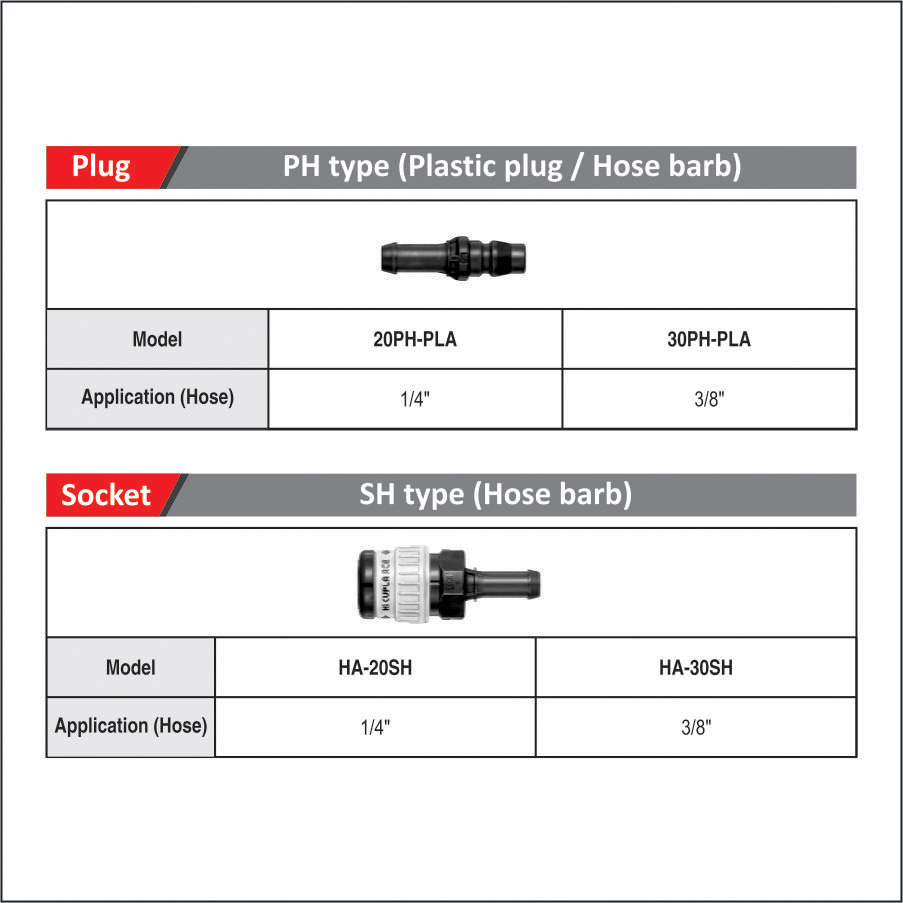

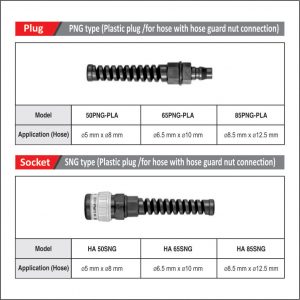

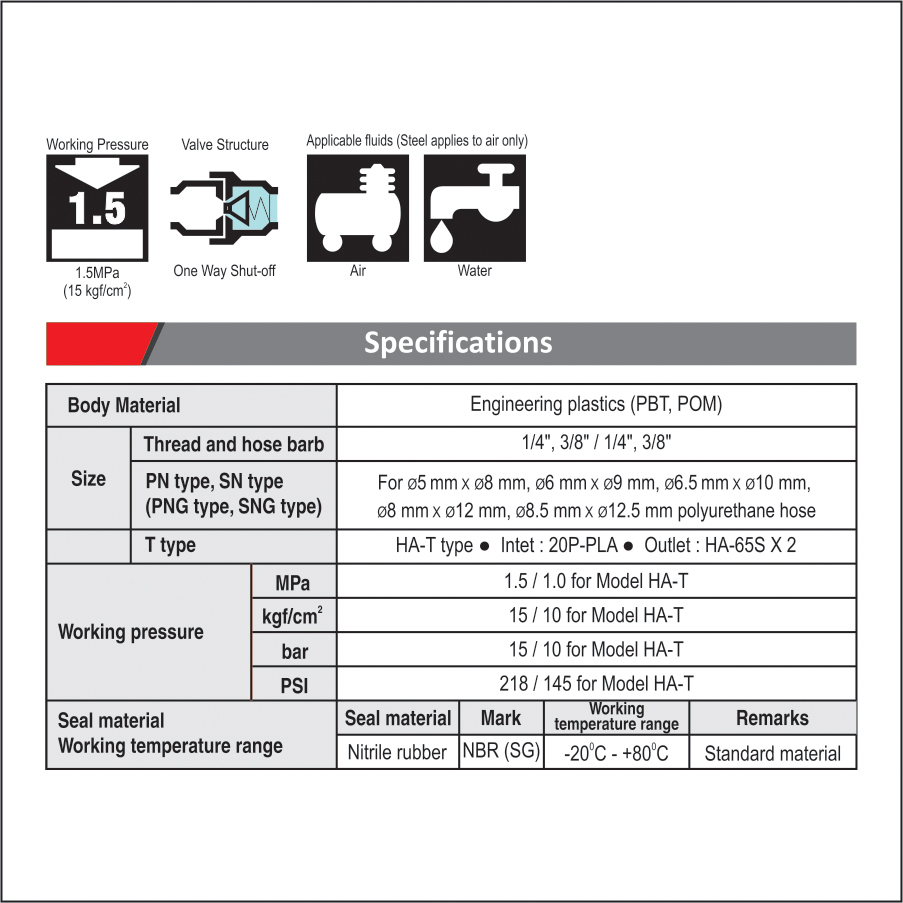

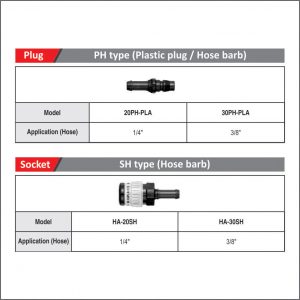

Hi Coupler ACE
Lightweight plastic coupling with automatic safety lock for air line applications.
- The Weight is merely a quarter of steel Hi Cupla’s and smooth push-in connection is achieved.
- Automatic sleeve lock for safety operation.
- Less likely to damage painted or easily dented surfaces than metal couplings.
Open E-Catalog
Watch Video
Description
Additional information
| Brand |
Nitto Kohki |
|---|
Related products

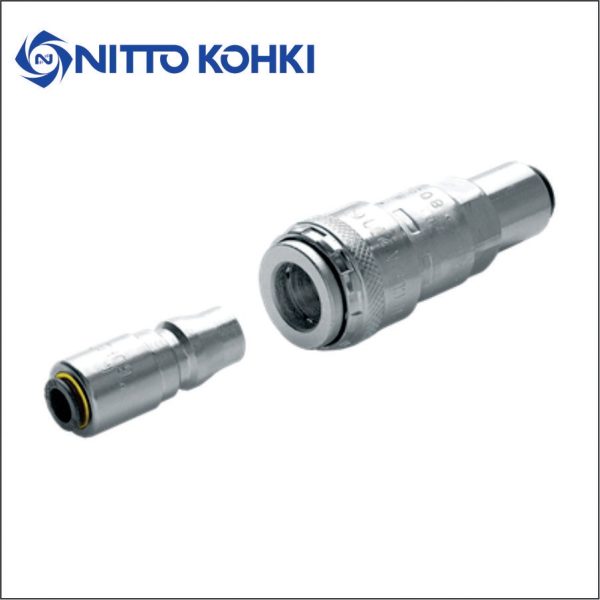

Hi Coupler
Universal purpose couplings for airlines
From factory airline to pneumatic tool connection, available in various body materials, sizes and end configurations. Excellent durability.
- An excellent general purpose coupling for connecting factory air supply to pneumatic tools.
- Steel coupling is suitable for air. Brass or stainless steel is suitable for water. Note that fluid will come out from the plug when disconnected.
- Critical structural parts of steel models are heat-treated for increased strength giving greater durability and resistance to wear.
- Available in various body materials, sizes and end configurations applicable to a wide range of applications
Open E-Catalog
Watch Video

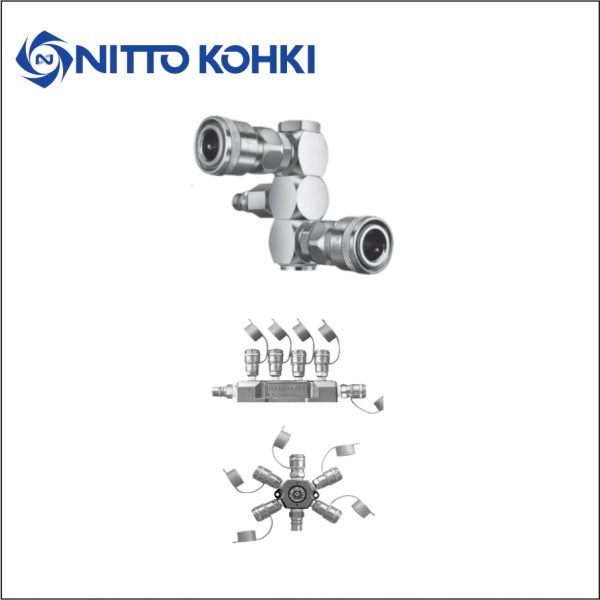

Rotary Line & Line Coupler
Simple design air line couplings on free turn manifold
Each air outlet can be turned freely to any angle
independently.
- Multiple outlets are available from single air supply source.
- Sideway air outlets are rotatable to any angle. Possible hose twists can be eliminated by the component Cuplas’ swivel mechanism.
- Choose either RT type (2 outlets) or RE type (3 outlets) to suit your application.
Open E-Catalog
Zero Spill Coupler
Minimizing spillage during disconnection keeps workshops clean
- Unique seal design reduces both liquid spillage and air ingress
- Reliable zero friction valve
- Push-to-connect design
- One-hand easy operation
- Wide variety of material options available
- Automatic sheet of valve in both sockets and plugs prevent fluid spill out on disconnection
Open E-Catalog
Watch Video
Lever Lock (Cam Lock) Coupler
Light lever pull-down will connect the plug and socket without fail ready to flow liquid or gases.
- This Cupla complies with diversified applications in liquid or gas transportation
- End-face seal structure enables no bumps or hollows on the internet fluid passage, and ensures smooth fluid transportation.
Open E-Catalog
210 Coupler
Standard hydraulic Cuplas for general purposes with a working pressure up to 20.6 MPa.
Low pressure loss, suitable for hydraulic equipment.
Features
1. For Hydraulic Pressures upto 210 Bar
2. Structure is designed to reduce pressure loss to the lowest and is best for hydraulic applications that need big flow rates
3. Both plug & socket have built-in automatic shut-off vlaves that prevent fluid outflow when disconnected
4. Easy to handle
Open E-Catalog
PCV Coupler
For connection to copper pipes
- Clamps direct on to a straight copper pipe eliminating unnecessary welding or flaring -1
- Withstands a vacuum of up to 1.3 x 10 Pa (when connected) making it possible to be used in leak testing, evacuation and refrigerant gas charge.
- Select from three standard types of seal materials to be used with fluids for air conditioner and refrigerator production lines. Many models to suit various pipe sizes.
Open E-Catalog
Multi Coupler
Simultaneously connects several ports securely in one operation! Greatly cuts cycle time in multiple ports replacement.
- Handles several ports at once.
- Simple manual lever action completes easy connection / disconnection.
- Two stage lever operation prevents Cupla from accidental dropping due to sudden detachment.
- Comes with lock mechanism to prevent accidental disconnection.
- Large flow equivalent to that of SP Cupla Type A.
- Two kinds of plates are available for each size.
- Automatic shut-off valves in both socket and plug prevent fluid spill out on disconnection.
Open E-Catalog
Watch Video
Coupler Accessories
Residual pressure within socket or plug can be released easily just by
turning the handle.
- Residual pressure within socket or plug can be released easily just by turning the handle.
- Residual pressure release jigs are available in two types; socket type for use with plugs and plug type for use with sockets.
- Connecting to sockets or plugs is the same as connecting normal cuplas.
