210 Coupler
Standard hydraulic Cuplas for general purposes with a working pressure up to 20.6 MPa.
Low pressure loss, suitable for hydraulic equipment.
Features

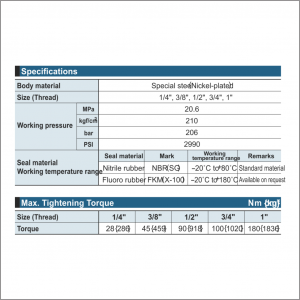

1. For Hydraulic Pressures upto 210 Bar

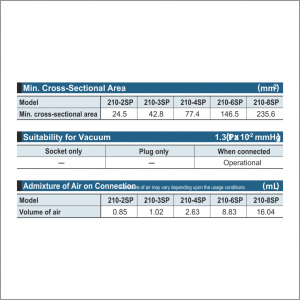

2. Structure is designed to reduce pressure loss to the lowest and is best for hydraulic applications that need big flow rates
3. Both plug & socket have built-in automatic shut-off vlaves that prevent fluid outflow when disconnected
4. Easy to handle
Open E-Catalog
Description
Additional information
| Brand |
Nitto Kohki |
|---|
