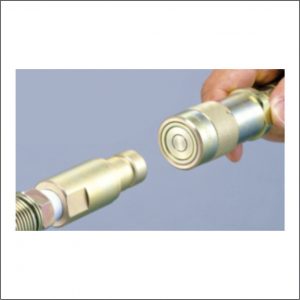

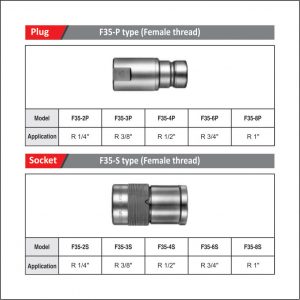

F35 Coupler
For hydraulic pressure up to 35.0 MPa with flat contact face
- Flat contact face design makes it easy to clean dust and foreign matters adhered on the surface of coupling to prevent from entering inside and causing faulty operation
- Minimizes air admixture during connection. l Push-to-connect operation.
- Push-to-connect operation
- Sleeve stopper mechanism is engaged by rotating sleeve after connection preventing accidental disconnection.
- The special design reduces pressure loss considerably
Open E-Catalog
Watch Video
Description
Additional information
| Brand |
Nitto Kohki |
|---|
