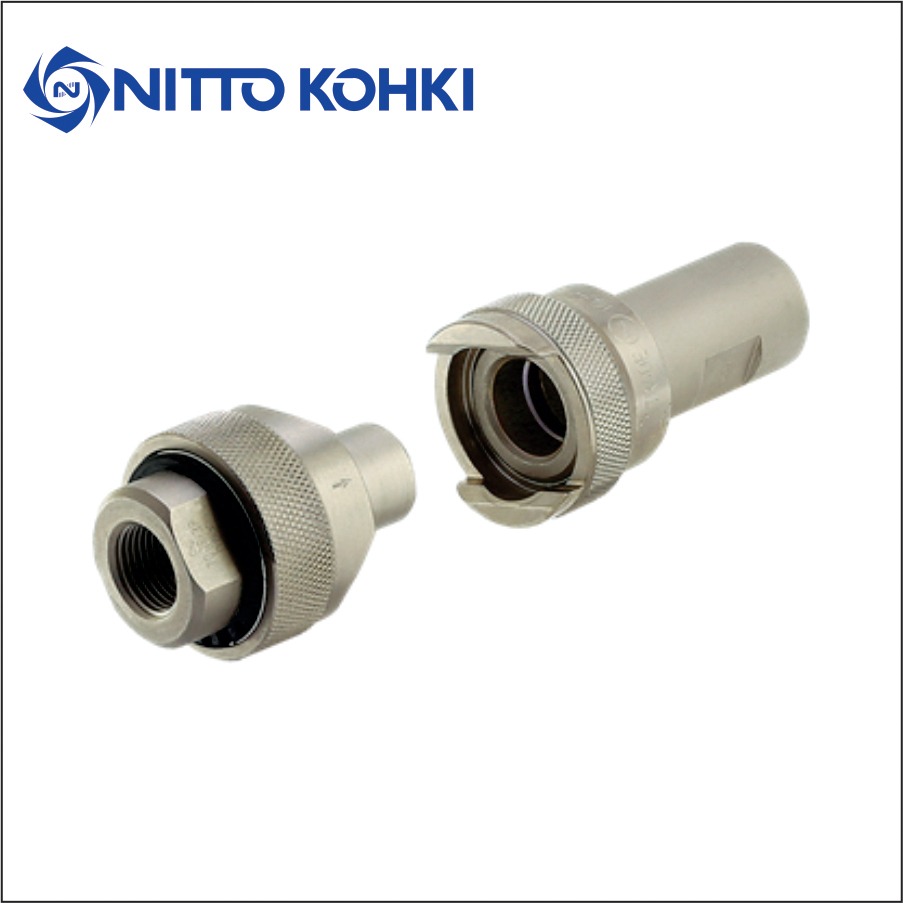

700R Coupler
High pressure Cupla for working pressures up to 68.6 MPa. Unique sleeve ring-lock system copes with vibration and impact when connected.
Features
1. For Hydraulic Pressures upto 700 Bar
2. Unique Sleeve ring-lock system copes with vibration and impact when connected
3. Metal-touch valves use no rubber seal and thus ensure excellent durability
4. Both plug & socket have metal-touch automatic shut-off valves that prevent fluid spill out on disconnection.
Open E-Catalog
Description
Additional information
| Brand |
Nitto Kohki |
|---|
