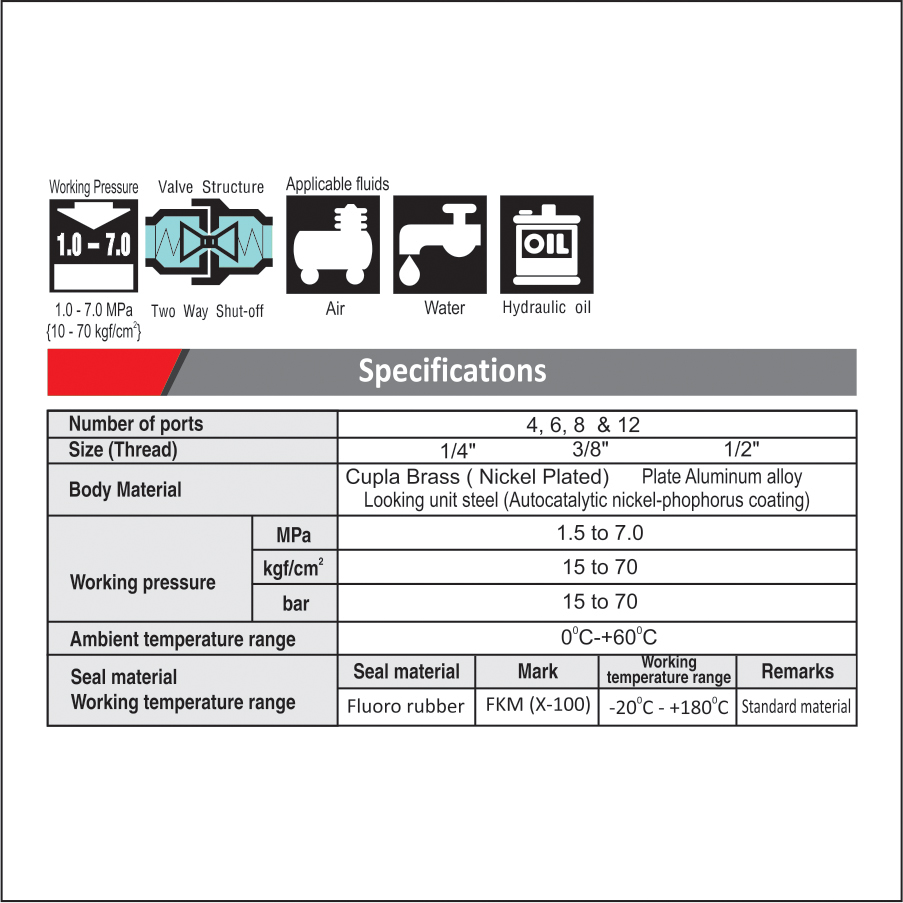

Multi Coupler
Simultaneously connects several ports securely in one operation! Greatly cuts cycle time in multiple ports replacement.
- Handles several ports at once.
- Simple manual lever action completes easy connection /
disconnection. - Two stage lever operation prevents Cupla from accidental
dropping due to sudden detachment. - Comes with lock mechanism to prevent accidental
disconnection. - Large flow equivalent to that of SP Cupla Type A.
- Two kinds of plates are available for each size.
- Automatic shut-off valves in both socket and plug prevent
fluid spill out on disconnection.
Open E-Catalog
Watch Video
Description
Additional information
| Brand |
Nitto Kohki |
|---|
