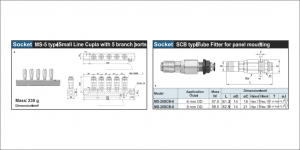

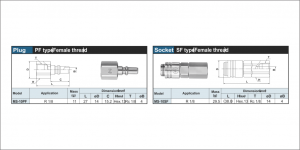

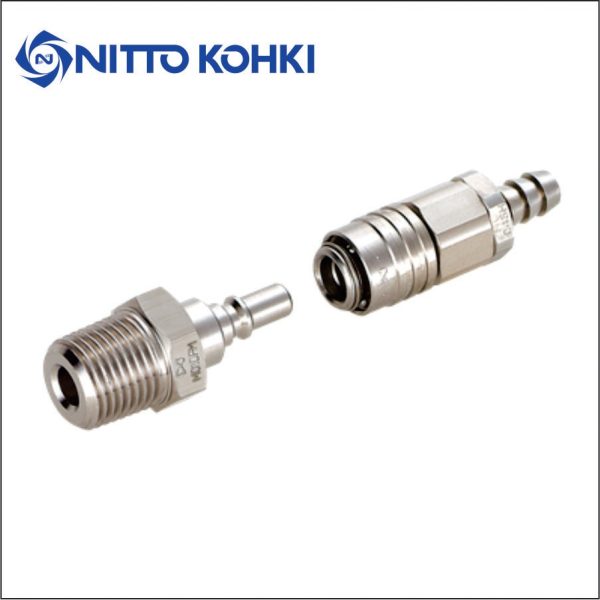

Small Coupler
Lightweight and compact push-toconnect
operation.
Responding to requirements of modular
combinations.
Open E-Catalog
Description
Additional information
| Brand |
Nitto Kohki |
|---|
Related products

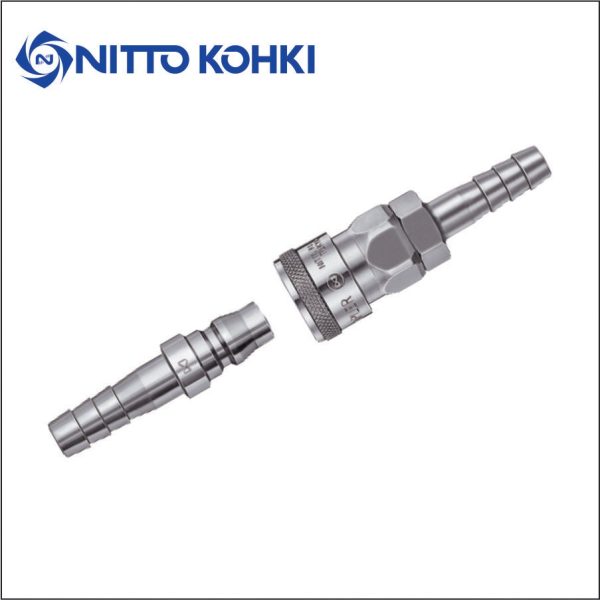

Hi Coupler 200
Simple and secure push-to-connect type! Big flow rate! End-face seal design. Gives excellent handling touch.
- Just push the plug into the socket for simple ans secure connection.This reduces connection.This reduces connection time and improves efficiency.
- New value design for pressure loss to achieve flow rate increse
- End-face seal is achieved when connected.
- Enhanced operability with low connection resistence
- Available only with quick connect/disconnect tube filter type.
Open E-Catalog
Full Blow Coupler
Unique full-open gate type valve mechanism
realizes low pressure loss and high flow rate,
which reduces required source air volume.
The flow rate is increased by up to 40% more then that of conventional
Cuplas.
- During connection and disconnection the valve is closed, enabling connection/disconnection under zero line pressure.
- When the sleeve of socket is returned to its original position, the purge mechanism releases the residual air pressure in the plug, eliminating an unpleasant popping noise and a hose whip back motion on disconnection.
Open E-Catalog
Watch Video
Zero Spill Coupler
Minimizing spillage during disconnection keeps workshops clean
- Unique seal design reduces both liquid spillage and air ingress
- Reliable zero friction valve
- Push-to-connect design
- One-hand easy operation
- Wide variety of material options available
- Automatic sheet of valve in both sockets and plugs prevent fluid spill out on disconnection
Open E-Catalog
Watch Video
Lever Lock (Cam Lock) Coupler
Light lever pull-down will connect the plug and socket without fail ready to flow liquid or gases.
- This Cupla complies with diversified applications in liquid or gas transportation
- End-face seal structure enables no bumps or hollows on the internet fluid passage, and ensures smooth fluid transportation.
Open E-Catalog
Mini Coupler
Exclusively for oxyacetylene equipment
Many variations with higher flow rates!
- From cylinders to torches, all piping connections associated with welding and cutting equipment are push-to-connect operations.
- Double-lip seal prevents minor leak during connection. Oxygen and fuel gas Cuplas have different sizes to prevent accidental interconnection. Plugs with backflow stop valve in Mini Cupla are designed for gas welding/cutting to prevent occurrence of gas mixing.
- Pressure loss is minimized to achieve higher flow rate.
- Various types of end configurations have been standardized to comply with a wide range of welding and cutting equipment applications.
Open E-Catalog
Multi Coupler
Simultaneously connects several ports securely in one operation! Greatly cuts cycle time in multiple ports replacement.
- Handles several ports at once.
- Simple manual lever action completes easy connection / disconnection.
- Two stage lever operation prevents Cupla from accidental dropping due to sudden detachment.
- Comes with lock mechanism to prevent accidental disconnection.
- Large flow equivalent to that of SP Cupla Type A.
- Two kinds of plates are available for each size.
- Automatic shut-off valves in both socket and plug prevent fluid spill out on disconnection.
Open E-Catalog
Watch Video
Coupler Accessories
Residual pressure within socket or plug can be released easily just by
turning the handle.
- Residual pressure within socket or plug can be released easily just by turning the handle.
- Residual pressure release jigs are available in two types; socket type for use with plugs and plug type for use with sockets.
- Connecting to sockets or plugs is the same as connecting normal cuplas.
