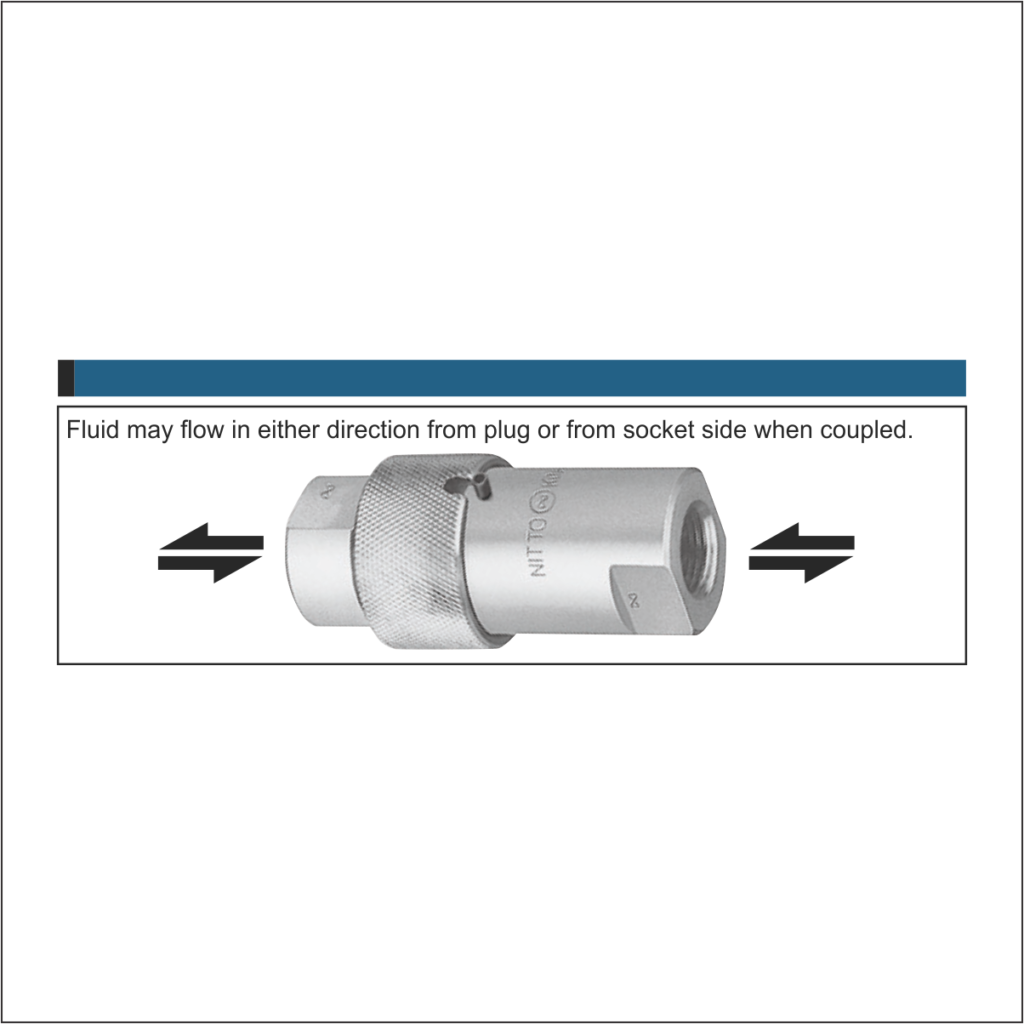

450 Coupler
Metal-touch valve system with superior durability! Sleeve stopper mechanism gives secure connection.
- Cupla for higher working pressure up to 44.1 MPa
Features
1. For Hydraulic Pressures upto 450 Bar
2. Metal touch valve system with superior durability.
3. Sleeve stopper mechanism gives secure connection.
4. Both plug & socket have metal-touch automatic shut-off valves that prevent fluid spill out on disconnection.
Open E-Catalog
Description
Additional information
| Brand |
Nitto Kohki |
|---|
