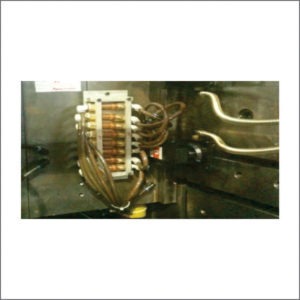

Flow Meter & Flow Monitor
For even coolant flow rate and reproducing prescribed flow rate
- Graduated scale enables easy visual check of coolant flow rate regardless of opertaor
- Built in flow rate adjustment valve enables desired setting of mold conditions
for each machine. - Easy resumptions of previously set molding conditions for each machines.
- T2 side is equipped with rotary functions. Even after flexing the body on T1
side to the piping. additional screw tightening on T2 side is possible. - Maintenance is extremely simple.
Open E-Catalog
Watch Video
Description
Additional information
| Brand |
Nitto Kohki |
|---|
Related products
Full Blow Coupler
Unique full-open gate type valve mechanism
realizes low pressure loss and high flow rate,
which reduces required source air volume.
The flow rate is increased by up to 40% more then that of conventional
Cuplas.
- During connection and disconnection the valve is closed, enabling connection/disconnection under zero line pressure.
- When the sleeve of socket is returned to its original position, the purge mechanism releases the residual air pressure in the plug, eliminating an unpleasant popping noise and a hose whip back motion on disconnection.
Open E-Catalog
Watch Video
350 Coupler
For hydraulic pressures up to 34.5 Mpa {352 kgf/cm2}
- Airless valve shut-off design greatly reduces air admixture!
- Ideal for hydraulic lines with larger pressure fluctuations
- Both socket and plug have built in automatic shut-off valves to prevent fluid spill out when disconnected. Easy to handle.
Open E-Catalog
700R Coupler
High pressure Cupla for working pressures up to 68.6 MPa. Unique sleeve ring-lock system copes with vibration and impact when connected.
Features
1. For Hydraulic Pressures upto 700 Bar
2. Unique Sleeve ring-lock system copes with vibration and impact when connected
3. Metal-touch valves use no rubber seal and thus ensure excellent durability
4. Both plug & socket have metal-touch automatic shut-off valves that prevent fluid spill out on disconnection.
Open E-Catalog
Mini Coupler
Exclusively for oxyacetylene equipment
Many variations with higher flow rates!
- From cylinders to torches, all piping connections associated with welding and cutting equipment are push-to-connect operations.
- Double-lip seal prevents minor leak during connection. Oxygen and fuel gas Cuplas have different sizes to prevent accidental interconnection. Plugs with backflow stop valve in Mini Cupla are designed for gas welding/cutting to prevent occurrence of gas mixing.
- Pressure loss is minimized to achieve higher flow rate.
- Various types of end configurations have been standardized to comply with a wide range of welding and cutting equipment applications.
Open E-Catalog
SP-V Coupler
Automatic shut-off valves in both socket and plug for vacuum applications.
Each can withstand a vacuum of as high as 1.3 x 10-1 Pa even when disconnected.
- Uses automatic shut-off valves with utral-tight sealed construction in both socket and plug. Ideal for vacuum applications.
- Having automatic shut-off valves in both socket and plug facilitates easy fluid handling. Suitable for a wide range of vacuum applications as high as 1.3 X 10-1 Pa {1 x 10-3 mmHg} even when disconnected.
- Three types of seal material are available to suit any of the diversified production lines for air conditioners, refrigerators or similar.
- Can be connected with SP Cupla Type A.
Open E-Catalog
Multi Coupler
Simultaneously connects several ports securely in one operation! Greatly cuts cycle time in multiple ports replacement.
- Handles several ports at once.
- Simple manual lever action completes easy connection / disconnection.
- Two stage lever operation prevents Cupla from accidental dropping due to sudden detachment.
- Comes with lock mechanism to prevent accidental disconnection.
- Large flow equivalent to that of SP Cupla Type A.
- Two kinds of plates are available for each size.
- Automatic shut-off valves in both socket and plug prevent fluid spill out on disconnection.
