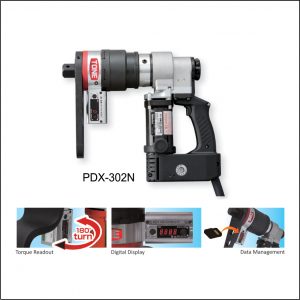

PDX Series
Digitorqon – PDX Series
- Actual tightening torque can be checked by digital indicator and torque can be recorded on Micro SD card equipped with the PDX.
- There is no need for heavy manual torque wrench
- PDX is a precise torque wrench (Torque indicator) is equipped.
Open E-Catalog
Watch Video
Description
Additional information
| Brand |
Tone |
|---|
Related products
Ratchet Head Version upto 300Nm
Ratchet Head Version upto 300Nm
- Preset type digital reading for tightening bolts/nuts
- Prevents unintended alteration of setting torque owing to independent handle and setting knob.
- Prevents mistake in torque setting as torque value can be indicated in self explanatory digits.
- When reaching the preset torque, the wrench makes a click sound as well as light retroaction.
- Repeated Accuracy: ±3% .
Open E-Catalog
STC series
Simple Torqon (STC Series)
- Easy Operation : Setting of target torque is easy owing to target torque setting dial. Setting of socket and nut is easy owing to free joint mechanism.
- High Accuracy : Repeated tightening torque accuracy: within +5% against required torque.
- Rotation to both directions : Main function such as torque control, soft start and free joint mechanism are common to both clockwise and counter clockwise directions.
- No Vibration: No impacting shock during use. No vibration and low noise.
- Simple Design : All necessary functions are incorporated in the wrench for no distractions during torquing.
- Automatic shut-off at preset torque
- Tone impact sockets can be used
Open E-Catalog
Watch Video
G Series Shear Wrench
G Series Shear Wrench TONE brand is a pioneer of Shear Wrench and
is 100% Made in Japan and is highly reliable.
Shear Wrench are designed for special TC Bolts. TC
Bolts tip are sheared by the special sockets.
A cut off tip of the TC bolt means that the torque is
achieved. It helps in visual inspection of the bolts.
Bolting Quality is maintained.
It is very helpful for steel structure bolting applications
where the number of bolts to be tightened are more.
Tension Control Bolt (TC Bolt) is calibrated bolt.
It knows when required tension has been reached
• A splined tip, grasped by Inner socket, and Nut
covered by Outer socket, countervailing
respectively, prevent bolt from turning
• When tip is gone, tension is correct.
Open E-Catalog
Watch Video
Manual Feed
For Manual and Robotic Pickup or Counting Application
Space-saving!- Compact, Portable and easy to install, adapng easily o various producon demandsƐ
Easy to use!-When changing the screw type, simply change the rail
Versatile-• Standard market screwdriver bits can be used.
• Corresponds with plain washer and spring washer screws.
• Corresponds with various screw types saving installaon } osts
• Connuous sc ew aligning without interrupon or jamming up due
• Simplify pickup by driver into a one-handed operaon, this machine eases
work efficiency and producvity on the jobď
Open E-Catalog
Robotic Feed
Screw feeder OM26-series for Steel screws (Magnetic)
- Hopper capacity: 300cc
- Applicable screws M2 ~ M6 for Steel Screws only
- Length up to 25mm
Open E-Catalog
Torque Checker – TTC
Torque Wrench Checker
Check anytime the actual torque
- value before using the torque wrench.
- Visible LED Display prevents mistake in reading the torque value.
- 3 measurement mode are installed (Peak mode/Track mode/Peak hold mode).
- Available for various size and head of the wrench by using Adaptors.
