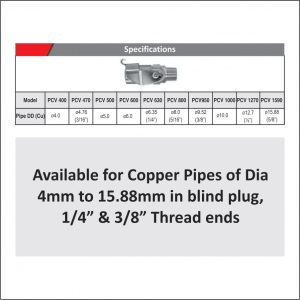

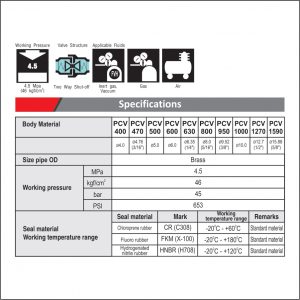

PCV Coupler
For connection to copper pipes
- Clamps direct on to a straight copper pipe eliminating unnecessary welding or flaring -1
- Withstands a vacuum of up to 1.3 x 10 Pa (when connected) making it possible to be used in leak testing, evacuation and refrigerant gas charge.
- Select from three standard types of seal materials to be used with fluids for air conditioner and refrigerator production lines. Many models to suit various pipe sizes.
Open E-Catalog
Description
Additional information
| Brand |
Nitto Kohki |
|---|
Related products
Hi Coupler
Universal purpose couplings for airlines
From factory airline to pneumatic tool connection, available in various body materials, sizes and end configurations. Excellent durability.
- An excellent general purpose coupling for connecting factory air supply to pneumatic tools.
- Steel coupling is suitable for air. Brass or stainless steel is suitable for water. Note that fluid will come out from the plug when disconnected.
- Critical structural parts of steel models are heat-treated for increased strength giving greater durability and resistance to wear.
- Available in various body materials, sizes and end configurations applicable to a wide range of applications
Open E-Catalog
Watch Video
Full Blow Coupler
Unique full-open gate type valve mechanism
realizes low pressure loss and high flow rate,
which reduces required source air volume.
The flow rate is increased by up to 40% more then that of conventional
Cuplas.
- During connection and disconnection the valve is closed, enabling connection/disconnection under zero line pressure.
- When the sleeve of socket is returned to its original position, the purge mechanism releases the residual air pressure in the plug, eliminating an unpleasant popping noise and a hose whip back motion on disconnection.
Open E-Catalog
Watch Video
Lever Lock (Cam Lock) Coupler
Light lever pull-down will connect the plug and socket without fail ready to flow liquid or gases.
- This Cupla complies with diversified applications in liquid or gas transportation
- End-face seal structure enables no bumps or hollows on the internet fluid passage, and ensures smooth fluid transportation.
Open E-Catalog
350 Coupler
For hydraulic pressures up to 34.5 Mpa {352 kgf/cm2}
- Airless valve shut-off design greatly reduces air admixture!
- Ideal for hydraulic lines with larger pressure fluctuations
- Both socket and plug have built in automatic shut-off valves to prevent fluid spill out when disconnected. Easy to handle.
Open E-Catalog
450 Coupler
Metal-touch valve system with superior durability! Sleeve stopper mechanism gives secure connection.
- Cupla for higher working pressure up to 44.1 MPa
Open E-Catalog
210 Coupler
Standard hydraulic Cuplas for general purposes with a working pressure up to 20.6 MPa.
Low pressure loss, suitable for hydraulic equipment.
Features
1. For Hydraulic Pressures upto 210 Bar
2. Structure is designed to reduce pressure loss to the lowest and is best for hydraulic applications that need big flow rates
3. Both plug & socket have built-in automatic shut-off vlaves that prevent fluid outflow when disconnected
4. Easy to handle
Open E-Catalog
SP-V Coupler
Automatic shut-off valves in both socket and plug for vacuum applications.
Each can withstand a vacuum of as high as 1.3 x 10-1 Pa even when disconnected.
- Uses automatic shut-off valves with utral-tight sealed construction in both socket and plug. Ideal for vacuum applications.
- Having automatic shut-off valves in both socket and plug facilitates easy fluid handling. Suitable for a wide range of vacuum applications as high as 1.3 X 10-1 Pa {1 x 10-3 mmHg} even when disconnected.
- Three types of seal material are available to suit any of the diversified production lines for air conditioners, refrigerators or similar.
- Can be connected with SP Cupla Type A.
