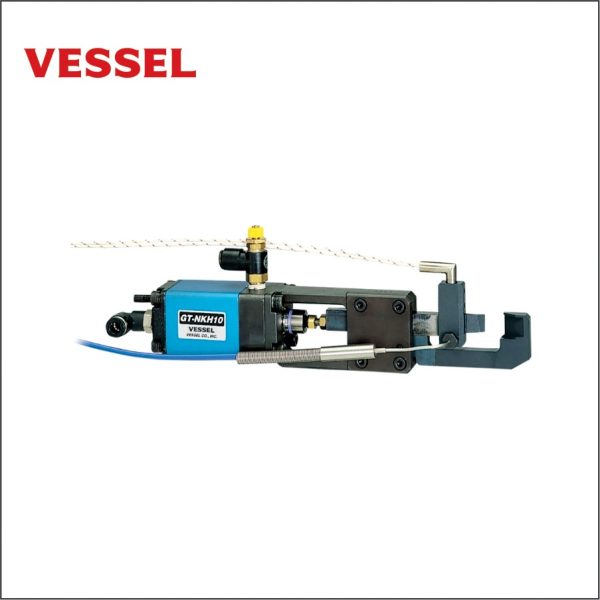

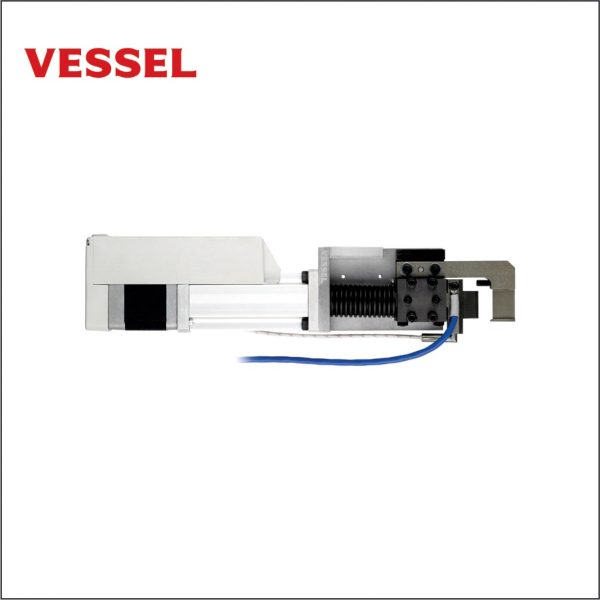

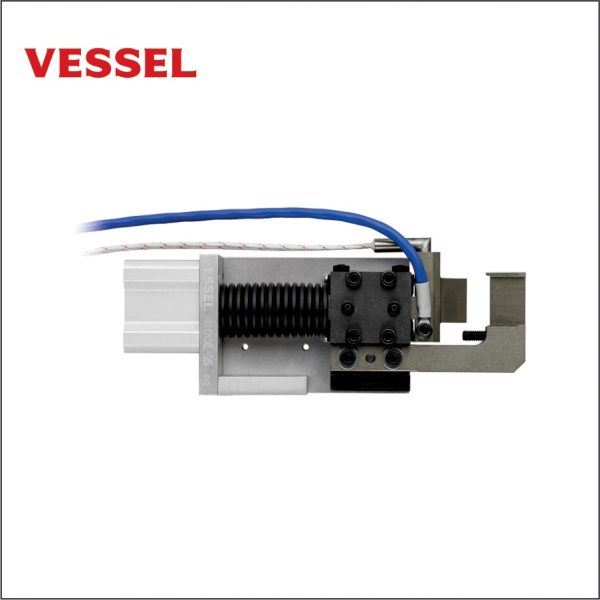

Air Hydro Nipper
- Requires Hydro Controller additionally Custom made blade lengths and cylinder capacities available Includes heater, temperature sensor.
- Air – hydro cylinders produce high power from air and oil.
- These units are ideal for high precision cuts required for products such as optical resin lenses.
- Cutting transparent resin by thermal force without cracks or whitening
Open E-Catalog

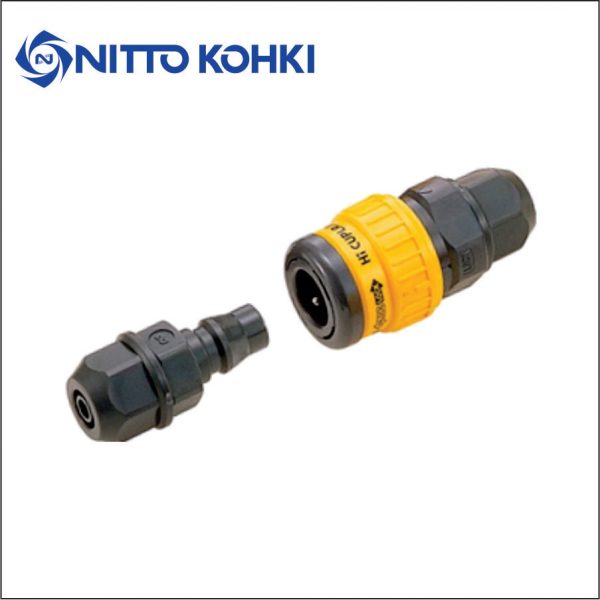

Hi Coupler
Universal purpose couplings for airlines
From factory airline to pneumatic tool connection, available in various body materials, sizes and end configurations. Excellent durability.
- An excellent general purpose coupling for connecting factory air supply to pneumatic tools.
- Steel coupling is suitable for air. Brass or stainless steel is suitable for water. Note that fluid will come out from the plug when disconnected.
- Critical structural parts of steel models are heat-treated for increased strength giving greater durability and resistance to wear.
- Available in various body materials, sizes and end configurations applicable to a wide range of applications
Open E-Catalog
Watch Video
Hi Coupler 200
Simple and secure push-to-connect type! Big flow rate! End-face seal design. Gives excellent handling touch.
- Just push the plug into the socket for simple ans secure connection.This reduces connection.This reduces connection time and improves efficiency.
- New value design for pressure loss to achieve flow rate increse
- End-face seal is achieved when connected.
- Enhanced operability with low connection resistence
- Available only with quick connect/disconnect tube filter type.
Open E-Catalog
Hi Coupler ACE
Lightweight plastic coupling with automatic safety lock for air line applications.
- The Weight is merely a quarter of steel Hi Cupla’s and smooth push-in connection is achieved.
- Automatic sleeve lock for safety operation.
- Less likely to damage painted or easily dented surfaces than metal couplings.
Open E-Catalog
Watch Video
Rotary Line & Line Coupler
Simple design air line couplings on free turn manifold
Each air outlet can be turned freely to any angle
independently.
- Multiple outlets are available from single air supply source.
- Sideway air outlets are rotatable to any angle. Possible hose twists can be eliminated by the component Cuplas’ swivel mechanism.
- Choose either RT type (2 outlets) or RE type (3 outlets) to suit your application.
Open E-Catalog
Twist & Rotary Plug
Eliminates hose twisting, kinking, or bending! Greatly improves working efficiency!
A plug with a free twisting neck for hose connections to pneumatic tools
and devices.
- Free angle control ( max.70 flexible) provides comfortable job positions, even in narrow spaces or with overhead works.
- The flexible part is reinforced with self-lubricating plastics to give smooth bending action and excellent durability.
- Dust protector over the flexible part prevents dirt and swarf from entering.
Open E-Catalog
Full Blow Coupler
Unique full-open gate type valve mechanism
realizes low pressure loss and high flow rate,
which reduces required source air volume.
The flow rate is increased by up to 40% more then that of conventional
Cuplas.
- During connection and disconnection the valve is closed, enabling connection/disconnection under zero line pressure.
- When the sleeve of socket is returned to its original position, the purge mechanism releases the residual air pressure in the plug, eliminating an unpleasant popping noise and a hose whip back motion on disconnection.
